What makes our phones, computers, and smart devices both strong and safe? The answer often lies in fiberglass cloth, a material that quietly powers modern electronics. Lightweight yet incredibly durable, it provides outstanding electrical insulation, heat resistance, and structural stability. In this article, you’ll learn how fiberglass is used in electronics and why it remains essential for creating efficient, reliable, and long-lasting devices.
Understanding Fiberglass and Fiberglass Cloth in Electronics
Fiberglass is a composite material made from extremely fine strands of glass woven together and embedded in resin. The resulting material is lightweight, strong, and non-conductive—an ideal combination for applications that demand both durability and safety.

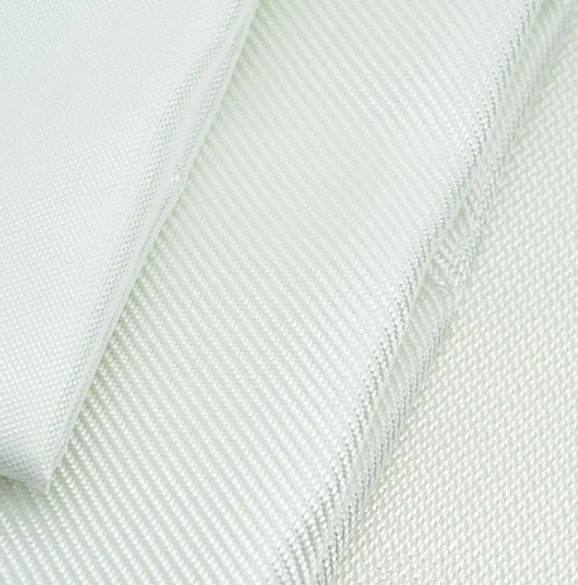

What Is Fiberglass Cloth?
Fiberglass cloth is a woven fabric consisting of continuous glass filaments. When impregnated with epoxy or phenolic resins, it forms a rigid composite that is both strong and electrically insulating. This material lies at the heart of fiberglass material use in electronics, providing structure and stability in printed circuit boards (PCBs), insulating panels, and protective casings.
Why Fiberglass Is Ideal for Electronics
Fiberglass’s unique composition gives it a high dielectric strength, excellent thermal endurance, and resistance to deformation under mechanical stress. Its non-conductive property makes it perfect for preventing short circuits, while its dimensional stability maintains precise tolerances during soldering and assembly processes.
Core Properties Beneficial to Electronics
Property | Benefit in Electronics |
Dielectric Strength | Prevents current leakage and short circuits |
Thermal Resistance | Withstands high temperatures during soldering |
Chemical Resistance | Protects against corrosion from flux or moisture |
Mechanical Strength | Maintains structure during vibration or impact |
Core Applications of Fiberglass in the Electronics Industry
Fiberglass’s adaptability allows it to enhance electrical safety, thermal management, and mechanical protection across a wide range of devices. It is indispensable not only in circuit substrates but also in insulation, enclosures, and support structures.
Printed Circuit Boards (PCBs)
The most recognizable use of fiberglass cloth in electronics is in PCB manufacturing. The standard FR-4 laminate is made from woven fiberglass fabric bonded with epoxy resin, creating a fiberglass reinforced epoxy substrate that supports copper circuitry. This combination provides the perfect balance of rigidity, heat resistance, and insulation.
Insulation and Protective Components
Fiberglass is widely used in insulation boards, terminal blocks, and transformer barriers. Its fiberglass fabric electrical insulation capability ensures safe energy transfer and prevents electrical arcing even under extreme voltage stress.
Electrical Enclosures and Switchgear
Fiberglass composites offer superior protection against fire, moisture, and chemicals. In switchgear housings and control panels, fiberglass replaces metals to eliminate conductivity risks while providing long-term corrosion resistance.
Cable Trays and Structural Supports
In large installations such as power plants or data centers, pultruded fiberglass materials form lightweight, non-conductive cable trays that resist heat and environmental wear.
High-Temperature and Flame-Retardant Applications
Because fiberglass retains its properties even when exposed to elevated temperatures, it’s ideal for devices like resistors, power converters, and heat shields.
Note: For industrial and outdoor systems, fiberglass provides an optimal balance of safety and environmental resilience unmatched by traditional metal alternatives.
The Role of Fiberglass Cloth in Printed Circuit Boards (PCBs)
Printed circuit boards rely heavily on fiberglass cloth for their structure and performance. This material forms the insulating base layer that supports copper tracks and electronic components.
Structure of a Fiberglass PCB
In most PCB constructions, woven fiberglass cloth such as 7628, 2116, or 1080 styles is combined with epoxy resin to form rigid laminates. These laminates, known as copper-clad boards, deliver both mechanical stability and dielectric protection for complex circuit designs.
Benefits in Circuit Design
Fiberglass laminates allow precise drilling, minimal thermal expansion, and uniform copper adhesion. They also reduce signal interference and distortion, supporting the compact multilayer configurations common in modern electronics.
Comparison to Other Substrate Materials
Substrate Type | Key Benefit | Common Application |
Fiberglass Epoxy (FR-4) | Excellent insulation, low cost | Consumer and industrial PCBs |
Ceramic | High thermal conductivity | Aerospace and high-frequency systems |
Metal-Core | Efficient heat dissipation | Power electronics |
Importance in High-Frequency Applications
Advanced electronic systems such as 5G base stations, automotive radar, and high-speed processors demand substrates with stable dielectric performance. Ultra-thin fiberglass cloth helps reduce signal loss and ensures high-frequency accuracy, making it a cornerstone of next-generation circuit design.
Electrical and Thermal Advantages of Fiberglass
Fiberglass plays a vital dual role in electronic design—it serves simultaneously as an electrical insulator and a thermal barrier, helping circuits operate safely and efficiently even under high-stress conditions. This combination of dielectric and thermal stability is what makes fiberglass material use in electronics indispensable for modern circuit integrity and system reliability.
Superior Electrical Insulation
One of fiberglass’s greatest strengths lies in its dielectric properties, which prevent current leakage between conductive layers and eliminate short circuits. Whether in microelectronics or high-voltage power systems, fiberglass maintains stable insulation even under varying loads, temperature shifts, and humidity. This reliability makes it a cornerstone for sensitive applications like inverters, transformers, and multilayer PCBs where electrical precision is non-negotiable.
Dielectric Strength and Safety
Even when exposed to high voltage, sudden surges, or fluctuating frequencies, fiberglass retains its dielectric strength and insulation performance. Unlike organic materials that may degrade over time, fiberglass reinforced epoxy substrates electronics maintain consistency throughout the device’s lifecycle. Its ability to isolate electrical currents ensures the long-term safety of operators and equipment, a critical factor in industrial, medical, and automotive electronics.
Thermal Resistance and Flame Retardancy
Fiberglass can withstand continuous exposure to high heat without warping or losing shape. Its inherent flame-retardant nature ensures compliance with international fire safety standards like UL94 V-0. In manufacturing environments, where soldering, wave reflow, and heat curing occur, fiberglass laminates protect sensitive circuits from deformation and maintain board integrity, enabling high-yield and reliable production outcomes.
Maintaining Dimensional Stability
Thermal Property | Function | Benefit |
High Glass Transition Temperature (Tg) | Keeps boards stable under heat | Prevents warping and cracking |
Flame Retardant Rating | Meets safety standards | Reduces fire risks |
Low Thermal Expansion | Minimizes stress on solder joints | Extends component lifespan |
Durability and Environmental Resistance
Modern electronic systems must resist not only heat but also harsh environmental factors such as moisture, vibration, and chemical exposure. Fiberglass excels in these scenarios, offering comprehensive protection and long-lasting mechanical strength. It ensures that fiberglass cloth-based electronics maintain both form and function across years of service in diverse operating conditions.
Corrosion and Chemical Resistance
Unlike metals, which can rust or oxidize, fiberglass is completely chemically inert, maintaining its structural and insulating qualities in corrosive atmospheres. It remains stable even when exposed to solvents, acids, and industrial gases. This makes fiberglass an excellent choice for marine electronics, power distribution systems, and control units that operate in high-humidity or chemically active environments.
Mechanical Strength and Shock Resistance
The woven structure of fiberglass cloth provides exceptional tensile strength and resistance to mechanical shock. When used in circuit substrates or support frames, this reinforcement prevents cracking, delamination, and vibration-induced failure. For industrial and automotive electronics, this mechanical resilience helps ensure that systems withstand long-term operational stress without losing connectivity or precision.
Moisture and Humidity Protection
Fiberglass has very low water absorption, which is critical for maintaining electrical insulation and dimensional stability. In humid regions or outdoor applications, this property prevents swelling, circuit failure, and short-circuiting. Fiberglass fabric electrical insulation electronics systems maintain consistent dielectric strength, even after long-term exposure to moisture, making them ideal for climate-resistant designs.
Longevity and Maintenance Efficiency
By combining resistance to heat, corrosion, and impact, fiberglass materials reduce both short-term maintenance and long-term repair costs. Electronics built with fiberglass substrates deliver greater durability, ensuring that components continue to function effectively throughout their service life, even in demanding conditions.

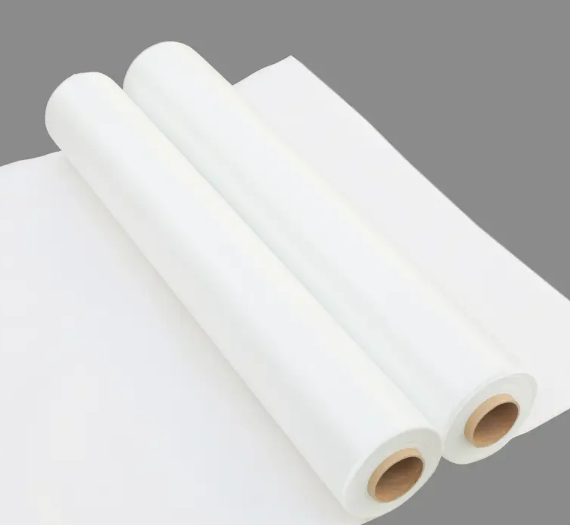

Types of Fiberglass Cloth for Electronics
Fiberglass cloth comes in several specialized grades, each engineered for a distinct balance of electrical insulation, mechanical performance, and environmental resistance. Selecting the right grade ensures that your product meets both functional and regulatory demands while maintaining cost-effectiveness.
E-Glass Cloth (Electrical Grade)
E-glass is the most common and cost-effective fiberglass type used in electronics. It offers superior dielectric strength, dimensional stability, and mechanical rigidity, making it ideal for fiberglass cloth for electronic circuit boards. Its compatibility with epoxy resins ensures tight bonding, high production yield, and reliable insulation performance for consumer and industrial PCBs alike.
S-Glass Cloth (Structural Grade)
S-glass is designed for applications that demand maximum strength and endurance. With higher tensile and flexural properties than E-glass, it is widely used in aerospace electronics, defense systems, and power modules where precision and stability under vibration or pressure are critical. It also provides improved fatigue resistance, making it ideal for long-term mechanical support.
C-Glass Cloth (Chemical Grade)
C-glass is tailored for environments exposed to moisture, chemicals, or industrial pollutants. It maintains dielectric reliability while resisting degradation caused by acids, alkalis, or saline conditions. C-glass composites are especially valuable in outdoor installations and chemical processing plants, offering a balance of insulation and chemical endurance.
Specialty Fiberglass Cloths
Advanced variations such as ultra-thin, plain-weave, and low-dielectric fiberglass fabrics are engineered for high-speed signal transmission and electromagnetic stability. These materials are critical in 5G base stations, AI computing modules, and RF communication systems where signal integrity and low dielectric loss determine overall device performance.
Type | Main Strength | Common Use |
E-Glass | Electrical insulation | PCBs, enclosures |
S-Glass | High tensile strength | Aerospace and defense |
C-Glass | Chemical resistance | Industrial electronics |
Ultra-Thin | Low dielectric loss | High-frequency systems |
Emerging Trends in Fiberglass Use in Electronics
As the electronics industry evolves, fiberglass materials are adapting to meet new requirements for miniaturization, sustainability, and high-speed performance. These advancements are redefining how engineers design devices for efficiency and durability.
Integration with Advanced Composites
Innovative material science is merging fiberglass with thermoplastic polymers, resulting in composites that are flexible, strong, and thermally stable. These hybrid laminates are shaping the next generation of flexible circuits, automotive electronics, and wearable devices that demand both durability and lightweight form.
Lightweight Alternatives to Metal
Fiberglass provides a non-conductive, corrosion-free alternative to metal components in enclosures, frames, and structural supports. By replacing aluminum or steel, fiberglass not only reduces total weight but also eliminates grounding concerns and electrical interference, simplifying design and improving energy efficiency.
Eco-Friendly and Halogen-Free Solutions
Environmental sustainability is a growing concern, and manufacturers are responding with halogen-free fiberglass cloth formulations that reduce toxic emissions during production and disposal. These materials comply with global standards such as RoHS and REACH, making them ideal for eco-conscious electronic production.
Innovations in Signal Integrity
New generations of fiberglass reinforced epoxy substrates electronics feature precisely controlled dielectric constants, enabling high-speed data transmission and reduced signal loss. These innovations support the expanding fields of IoT, telecommunications, and artificial intelligence hardware, where consistent signal flow and low latency are essential.
Selecting the Right Fiberglass Cloth for Your Application
Selecting the appropriate fiberglass cloth for an electronic application requires careful evaluation of both performance and environmental factors. The right choice can dramatically improve circuit stability, extend lifespan, and optimize production efficiency.
Assessing Electrical and Thermal Requirements
When choosing fiberglass materials, consider dielectric constant, thermal conductivity, and fire-retardant properties. Applications operating at high voltage or temperature should utilize fiberglass laminates with high glass transition temperatures (Tg) and low dielectric loss for maximum reliability.
Matching Cloth Type to Circuit Density
For compact, multilayer, or high-frequency PCBs, ultra-thin fiberglass cloth offers better resin flow, smoother surfaces, and improved dimensional precision. Power electronics and mechanical systems, however, benefit from thicker fabrics that provide structural strength and vibration resistance.
Considering Environmental Factors
Outdoor or industrial devices often face humidity, corrosion, and chemical exposure. In such cases, C-glass cloth or epoxy-coated laminates offer superior moisture resistance, preventing delamination and ensuring stable insulation performance over time.
Balancing Cost and Performance
Application | Recommended Cloth | Key Feature |
Consumer PCB | E-glass 7628 | Reliable and economical |
High-Speed PCB | Ultra-thin 2116 | Low dielectric loss |
Power Electronics | S-glass | High structural strength |
Outdoor Devices | C-glass | Moisture and chemical resistance |
Conclusion
Fiberglass cloth is vital for electronics, ensuring safety, durability, and stability in diverse devices. Jiahe Taizhou Glass Fiber Co., Ltd. provides high-quality products that enhance performance and reliability, supporting both consumer and industrial applications with durable, well-engineered solutions.
FAQ
Q: What is fiberglass used for in electronics?
A: Fiberglass is used in electronics for insulation, structural support, and thermal management. It enhances safety and durability in PCBs, enclosures, and high-voltage equipment.
Q: How does fiberglass cloth improve electronic circuit boards?
A: Fiberglass cloth for electronic circuit boards provides excellent electrical insulation, dimensional stability, and mechanical strength, ensuring reliable signal integrity and long-term performance.
Q: Why is fiberglass preferred over other materials in electronics?
A: Fiberglass offers high dielectric strength, thermal resistance, and mechanical toughness, making it ideal for compact, high-performance electronic devices.
Q: What types of fiberglass cloth are used in electronics?
A: Common types include E-glass for insulation, S-glass for structural strength, and C-glass for chemical resistance, all tailored to specific electronics applications.
Q: Can fiberglass reinforced epoxy substrates electronics withstand high temperatures?
A: Yes, fiberglass reinforced epoxy substrates electronics maintain form and insulation under soldering heat and continuous operation, supporting safety and reliability.
Q: How does fiberglass cloth for electronic circuit boards reduce failure risk?
A: It prevents electrical leakage, supports solder joints, and resists moisture, vibration, and thermal stress, reducing circuit board failures.
Q: Is fiberglass material use in electronics cost-effective?
A: Fiberglass combines performance and affordability, offering long-term reliability and durability that reduces maintenance and replacement costs in electronic systems.
Q: How does fiberglass fabric electrical insulation electronics help in industrial applications?
A: It provides high-voltage insulation, corrosion resistance, and flame retardancy, making it ideal for industrial electronics and high-stress environments.
Q: What is the difference between fiberglass cloth and other PCB substrates?
A: Fiberglass cloth offers better insulation, thermal stability, and mechanical strength compared to ceramic or metal-core substrates, while remaining cost-effective for mass production.
Q: How can I choose the right fiberglass cloth for my electronics project?
A: Match the cloth type to circuit density, thermal load, and environmental exposure. Use ultra-thin cloth for high-speed PCBs and thicker fabrics for power electronics.
